The Olympic class liners were a marvel of shipbuilding and engineering. Take a look at the complicated iron plan of the ship and you will see attention to detail everywhere.
These versions of the plans are redone in the THG style, but every original line, dimension, and note has been included. You could practically start rebuilding Titanic with these!
Drafted by architect and THG researcher Diana Estrella Buri.

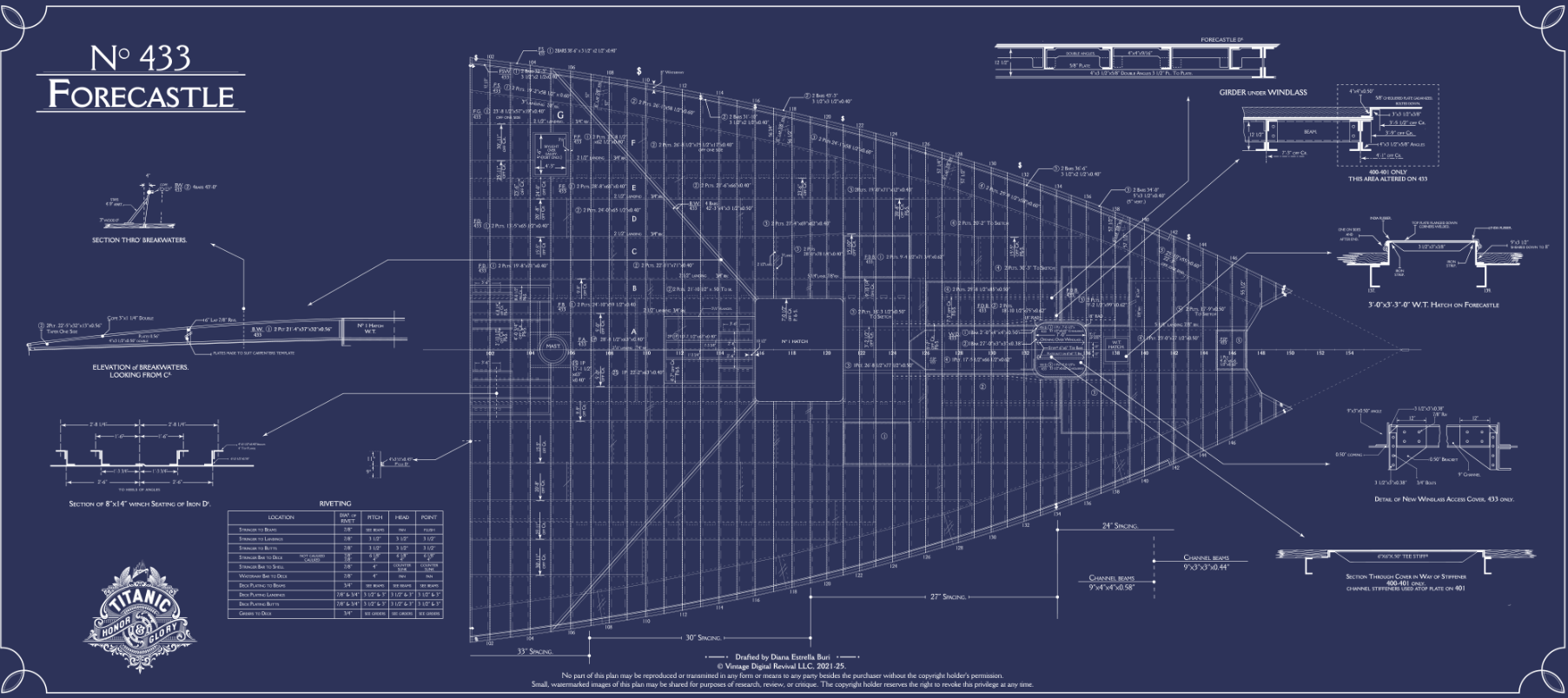

As Olympic and Titanic’s forecastle plan has not been uncovered yet by researchers, we have recreated Britannic’s which was nearly identical!
Three PNG images in white, blueprint blue, and canvas linen colors.
These are best viewed and downloaded on a computer due to the size of the images - 32,000 pixels by 14,222 pixels!
Possibly suitable to print on your own.
You will have to download and unzip the images.
The quality of plan previews may not fully represent the quality of the actual plans when downloaded.
Sorry, no refunds are available for digital purchases. Check out our FAQ for more info.
